특징
- NETRI의 미세유체장치는 체외 분석이나 생체내 실험을 대체하여 화합물의 효능과 독성을 이해하는데 이용됩니다.
- 칩에 사용된 PDMS silicone 재질은 높은 광학적 투과성과 생체적합성을 보장합니다.
- 서로 다른 세포를 각각 독립적으로 분화시키고 관찰할 수 있도록 분획(compartmentalization)되어 있습니다.

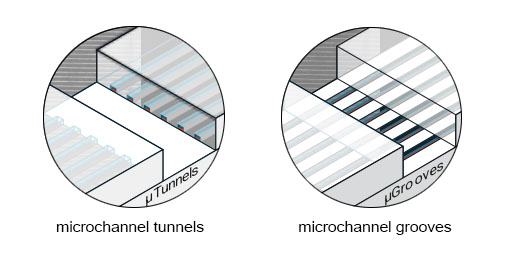

- 각 분획은 microchannel tunnel이나 groove를 통해 연결됩니다. (microchannel tunnel은 fluidic isolation용으로, microchannel groove는 axon의 continuous connectivity 용으로 적합합니다.)
- 단일 칩에서 동일한 장기의 다른 영역의 생리적 행동, 조직과 다른 조직의 상호 작용 또는 복잡한 신경망을 재현합니다. (예, neuron과 muscle cell의 조합으로 ALS 환경 재현)
- Porous polycarbonate membrane은 세포의 diffusion, exchange, communication을 조절합니다.
- Functional synapses recording등 neural network activity를 측정하기 위한 MEA format으로도 제공됩니다.
Microfluidic device 종류
1. NeuroFluidics™ Line
- Neurodegenerative disease 연구를 위한 pre-clinical organs-on-chip 제작에 이용
- 적용 : Drug screening, Axotomy, Neuroinflammation, Skin nociception, Embryology, Virology, Parkinson's disorders, ALS, Huntington's disease

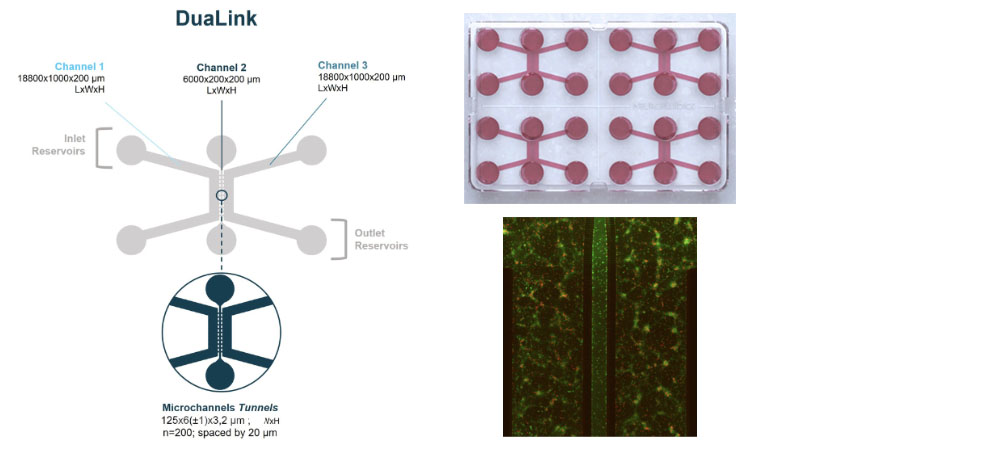

1) DuaLink
• 3 compartments : 2 for cell culture & 1 for fluidic isolation
• 4 up to 16 microfluidic chips per NeoBento
• Co-culture of different cell types
• Compartmentalization
• Fluidic isolation
• Discontinious connectivity by microchannels tunnels technology

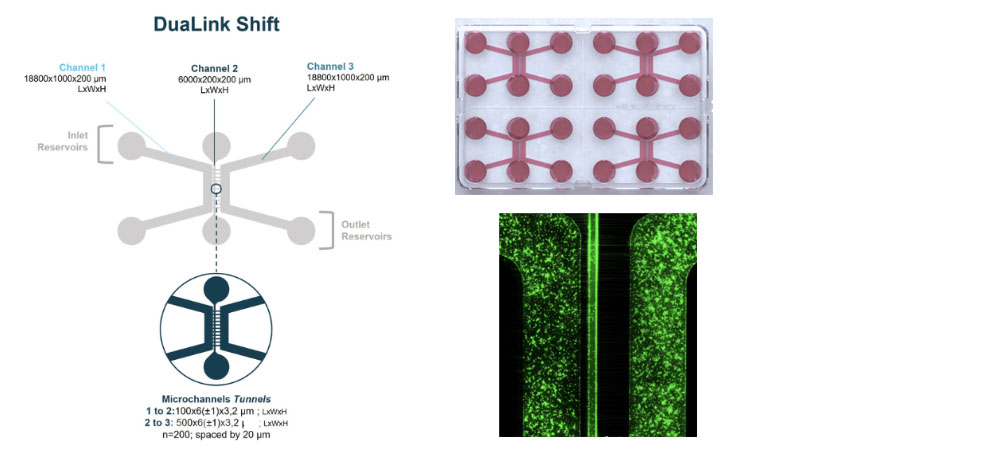

2) DuaLink Shift
• 3 compartments: 2 for cell culture & 1 for synaptic isolation
• 8 or 16 microfluidic chips per NeoBento™
• Synapse isolation in the middle channel
• Asymmetrical shape with microchannels of different length (shorter length between the first and second channel than between the second and third channel)
• Discontinious connectivity by microchannels tunnels technology

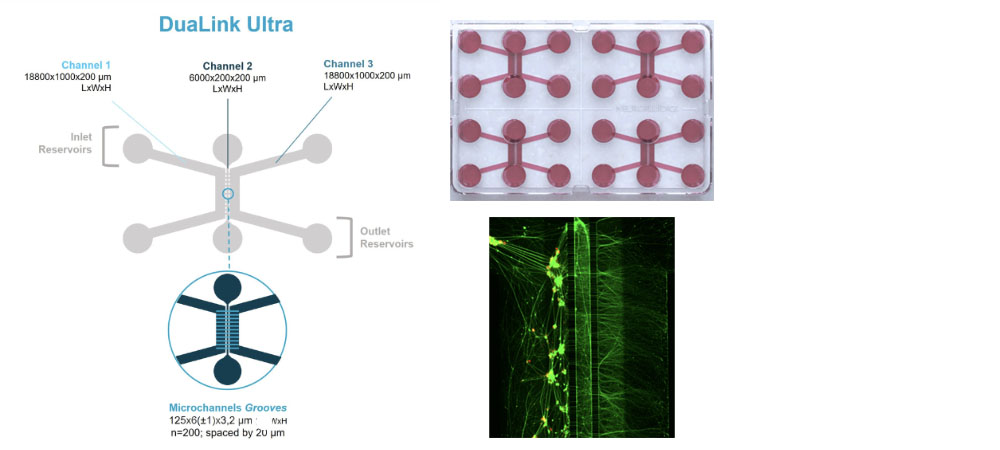

3) DuaLink Ultra
• 3 compartments : 2 for cell culture & 1 for fluidic isolation
• 8 or 16 microfluidic chips per NeoBento™
• Co-culture of different cell types
• Enhanced axonal projection and time to results
• Continuous connectivity by microchannels grooves technology

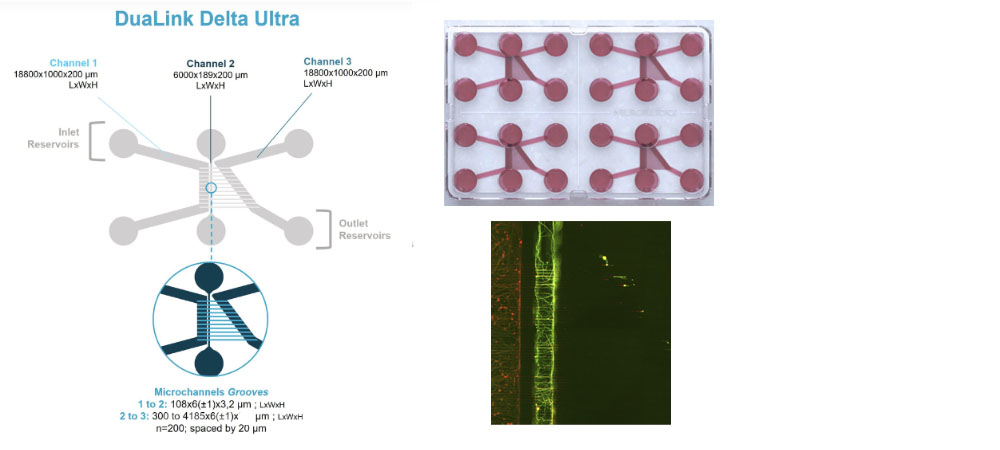

4) DuaLink Delta Ultra• 3 compartments: 1 for cell culture, 1 for fluidic isolation and 1 to monitor axonal growth
• 8 or 16 microfluidic chips per NeoBento™
• Enhanced growth kinetics
• Triangular shape with microchannels of different length
• Continuous connectivity by microchannels grooves technology

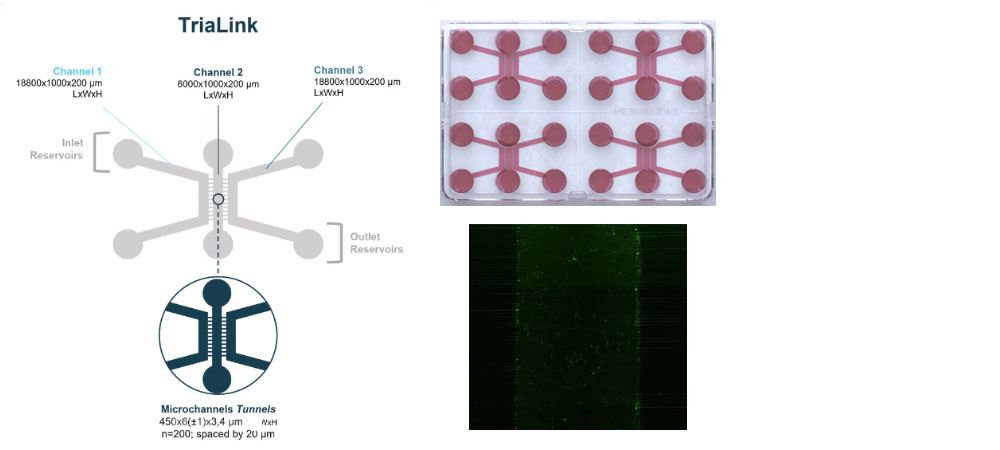

5) TriaLink
• 3 compartments for independant 3 different cell type cultures
• 8 or 16 microfluidic chips per NeoBento™
• Up to tri-culture of 3 different cell types
• Discontinuous connectivity by microchannels tunnels technology

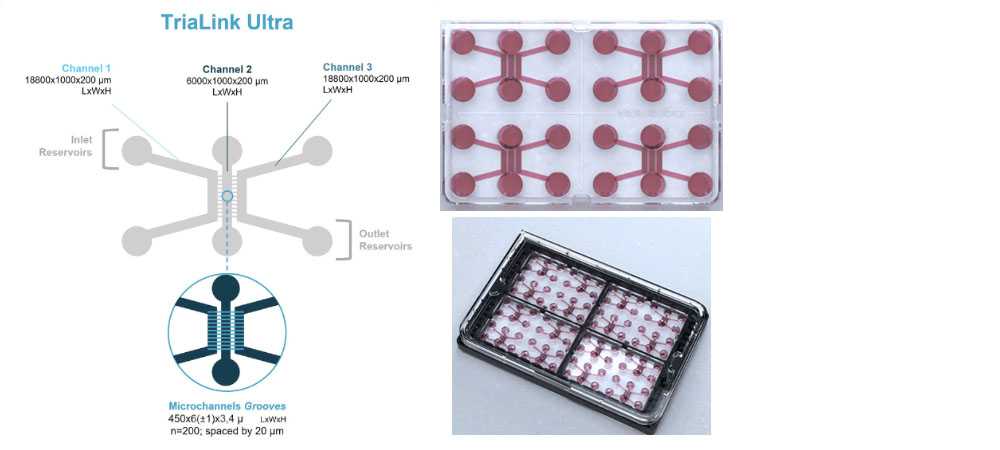

6) TriaLink Ultra
• 3 compartments for independant 3 different cell type cultures
• 8 or 16 microfluidic chips per NeoBento™
• Up to tri-culture of different cell types
• Continuous connectivity by microchannels grooves technology
2. NeuroFluidics™ MEA Line
- NeuroFluidics™ Line에 electrophysiology recording을 위한 MEA 기능을 탑재한 모델

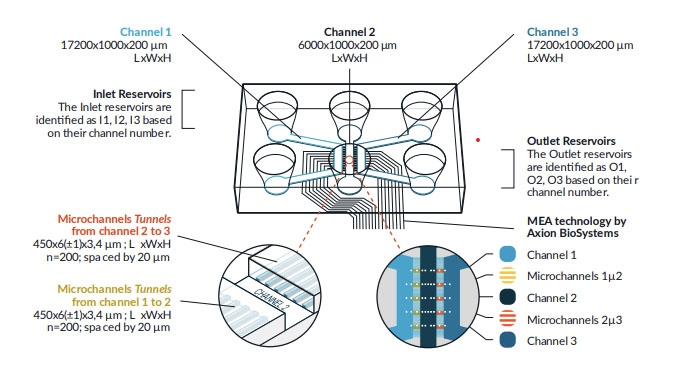

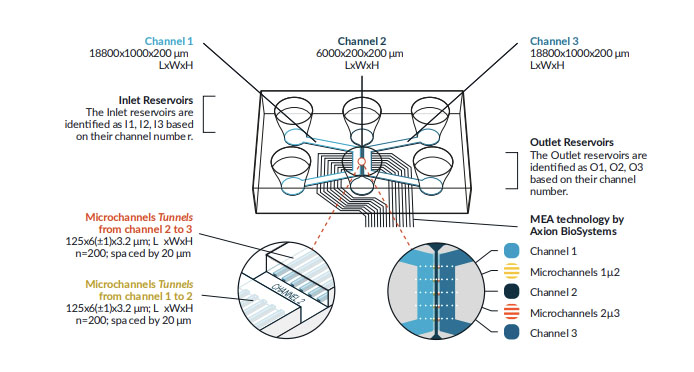

1) DuaLink MEA
• 3 compartments integrated on a custom Axion Biosystems MEA layer: 2 for cell culture & 1 for fluidic isolation
• 16 microfluidic chips per NeoBento™ MEA Pro with 672 electrodes
• 8 microfluidic chips per NeoBento™ MEA Edge with 336 electrodes
• Cell type electrophysology activity isolation per compartment
• Remote stimulation (compound or electrical)

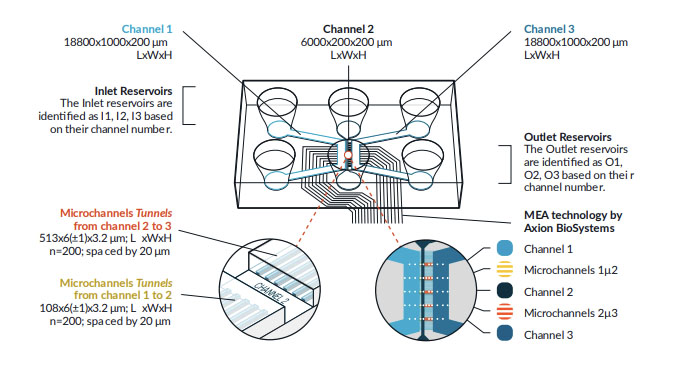

2) DuaLink Shift MEA
• 3 compartments integrated on a custom Axion Biosystems MEA layer: 2 for cell culture & 1 for synaptic isolation
• 16 microfluidic chips per NeoBento™ MEA Pro with 672 electrodes
• 8 microfluidic chips per NeoBento™ MEA Edge with 336 electrodes
• Asymmetrical shape with microchannels of different length
• Orientation of the network by preferentially allowing axons to develop from channel 3 to channel 1
• Synapses electrophysology activity isolation per compartment

3) TriaLink MEA
• 3 compartments integrated on a custom Axion Biosystems MEA layer: 3 for cell culture
• 16 microfluidic chips per NeoBento™ MEA Pro with 672 electrodes
• 8 microfluidic chips per NeoBento™ MEA Edge with 336 electrodes
• Cell type electrophysology activity isolation per compartment
• Remote stimulation (compound or electrical)

Format

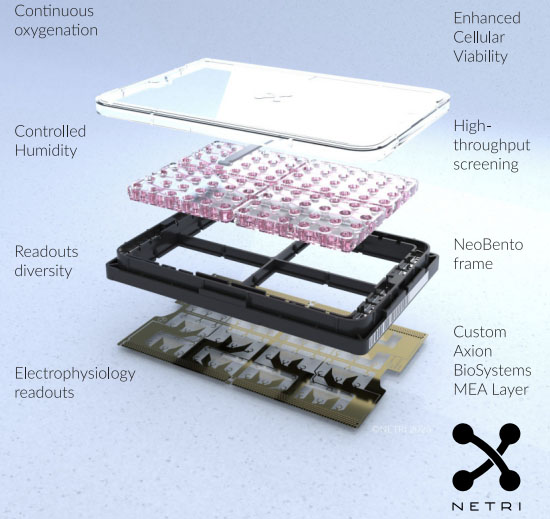

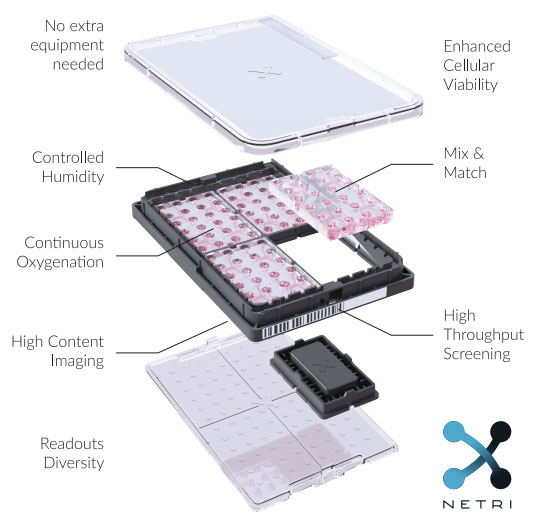

1. NeoBento™ HT Format
- 96-well plate 형태로 제공
- 거의 모든 자동화 liquid handler 및 imaging 장치에 호환
- 최대 4일동안 물 추가하지 않고 습기 유지
- 4개의 QuarterBento로 구성되어 있으며, 각 QuarterBento는 부분적으로 꺼내어 분석 가능 (제거된 부분은 plug로 대체)
2. NeoBento™ MEA
- NeoBento™ HT Format에 MEA 호환성을 추가한 device
- Electrophysiology readout 가능
