시약 및 기기 상세
단백질 농축 정제용 Proteus X-spinner Ultrafiltration Device 이미지

단백질 농축 정제용 Proteus X-spinner Ultrafiltration Device

Proteus X-spinner는 단백질 샘플을 농축, 정제하는 ultrafiltration concentrator 입니다.

프린트 제품 문의

특징





  • 멤브레인 막힘(fouling) 방지 기술을 적용하여 안정적이고 재현성 높은 실험이 가능합니다.
  • Hold-up volume이 작아 단백질 농축 후 높은 회수율을 유지할 수 있습니다.
  • ​다양한 MWCO 옵션을 제공하여 실험 목적에 맞는 선택이 가능합니다.
  • X-Spinner 2.5는 원심 분리 방식을 이용하며, X-Spinner-8과 X-Spinner-20은 pressure cap을 이용하여 원심분리기 없이 빠르게 단백질을 농축할 수 있습니다.




종류





X-Spinner 2.5


  • 2.5ml UF concentrator로 protein recovery가 매우 높습니다.

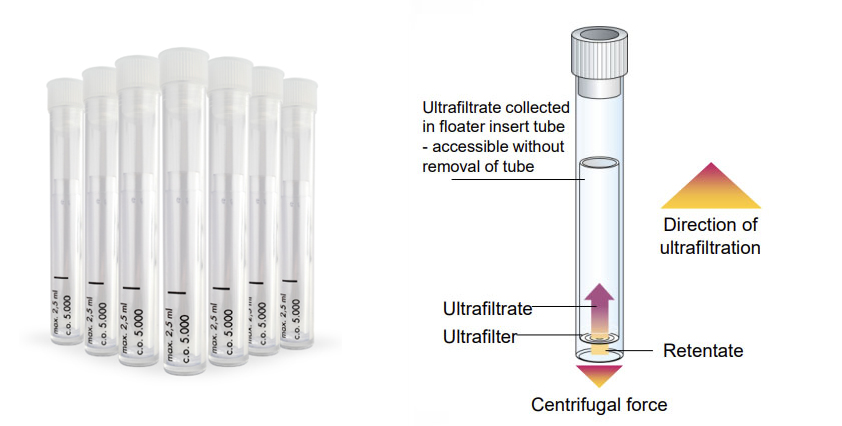

  • 단백질 결합력이 낮은 CTA membrane를 사용하였고, 원심력의 반대 방향으로 filtration이 되도록 고안되어 필터가 막히는 것을 방지합니다.
  • 5,10,20kDa은 Cellulose Triacetate 재질을, 100, 300kDa는 PES 재질을 이용하였습니다.
  • Body는 Polystyrene 재질로, 화학재료에 잘 견디며 금이 가지 않습니다.





적용



  • Membrane protein (Use 100 kDa MWCO)
  • Viscous samples
  • Dilute protein solutions
  • Sticky and hydrophobic proteins
  • Protein fractions post Size Exclusion or IMAC
  • De-proteinization of blood and serum samples
  • Separating fee analyte or label from bound analytes/bound label






Performance : % Protein recoveries are improved with the Proteus X-spinner 2.5. Up to 98% protein recoveries were observed with 2.5 ml hydrophobic protein concentrated to 0.25 ml at 2,500 g






X-Spinner 8


  • 특별히 제작된 pressure cap을 이용하여 원심분리기 없이 사용 가능합니다.
  • 10 minute protocol을 이용하여 샘플을 빠르게 처리할 수 있습니다.
  • 일반적인 단백질 농축에 적합합니다.
  • Sample Volume Range : 1-8 mL
  • MWCO: 3, 10, 30, 100 kDA





적용



  • Ultrafiltration
  • Concentration and / or diafiltration for purification of biological samples
  • High solute concentration solutions
  • Protein and DNA desalting/buffer exchange
  • Nucleic Acid concentration
  • Recovery of Genomic DNA
  • Removal of contaminants







 X-Spinner 20


  • 특별히 제작된 pressure cap을 이용하여 원심분리기 없이 사용 가능합니다.
  • High-throughput application에 적합합니다.
  • Sample Volume Range : 5-20 mL
  • MWCO: 3, 10, 30, 100 kDA





적용



  • Ultrafiltration
  • Concentration and / or diafiltration for purification of biological samples
  • High solute concentration solutions
  • Protein and DNA desalting/buffer exchange
  • Nucleic Acid concentration
  • Recovery of Genomic DNA
  • Removal of contaminants




주문정보

주문정보 - Cat No, PRODUCT, SIZE, 수량 등 항목으로 구성되어있습니다.
  Product Cat.No. Size Maker Qty Data Sheet MSDS
Pressure Cap for X-Spinner 20 (24 Pressure Caps and 24 Syringes Included) PAL-X-P20-24 24/PK PROTEIN ARK
Pressure Cap for X-Spinner 20 (4 Pressure Caps and 4 Syringes Included) PAL-X-P20-4 4/PK PROTEIN ARK
Pressure Cap for X-Spinner 8 (24 Pressure Caps and 24 Syringes Included) PAL-X-P8-24 24/PK PROTEIN ARK
Pressure Cap for X-Spinner 8 (4 Pressure Caps and 4 Syringes Included) PAL-X-P8-4 4/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (10 kDa MWCO, cellulose tri-acetate membrane, 24 pc) PAL-X-10-24 24/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (10 kDa MWCO, cellulose tri-acetate membrane, 96 pc) PAL-X-10-96 96/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (100 kDa MWCO, PES membrane, 24 pc) PAL-X-100-24 24/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (100 kDa MWCO, PES membrane, 96 pc) PAL-X-100-96 96/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (20 kDa MWCO, cellulose tri-acetate membrane, 24 pc) PAL-X-20-24 24/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (20 kDa MWCO, cellulose tri-acetate membrane, 96 pc) PAL-X-20-96 96/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (300 kDa MWCO, PES membrane, 24 pc) PAL-X-300-24 24/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (300 kDa MWCO, PES membrane, 96 pc) PAL-X-300-96 96/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (5 kDa MWCO, cellulose tri-acetate membrane, 24 pc) PAL-X-5-24 24/PK PROTEIN ARK
Proteus X-spinner 2.5 Pack (5 kDa MWCO, cellulose tri-acetate membrane, 96 pc) PAL-X-5-96 96/PK PROTEIN ARK
Proteus X-spinner 2.5 TRIAL Pack (Assorted MWCOs, 12 pc) (2 x 5 kDa MWCO, 3 x 10 kDa MWCO, 2 x 20 kDa MWCO, 3 x 100 kDa MWCO, 2 x 300 kDa MWCO) PAL-X-TR-12 12/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (10 kDa MWCO, 24 pc) PAL-X20-10-24 24/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (10 kDa MWCO, 6 pc) PAL-X20-10-6 6/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (10 kDa MWCO, 96 pc) PAL-X20-10-96 96/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (100 kDa MWCO, 24 pc) PAL-X20-100-24 24/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (100 kDa MWCO, 6 pc) PAL-X20-100-6 6/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (100 kDa MWCO, 96 pc) PAL-X20-100-96 96/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (3 kDa MWCO, 24 pc) PAL-X20-3-24 24/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (3 kDa MWCO, 6 pc) PAL-X20-3-6 6/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (3 kDa MWCO, 96 pc) PAL-X20-3-96 96/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (30 kDa MWCO, 24 pc) PAL-X20-30-24 24/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (30 kDa MWCO, 6 pc) PAL-X20-30-6 6/PK PROTEIN ARK
Proteus X-Spinner 20 Pack (30 kDa MWCO, 96 pc) PAL-X20-30-96 96/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (10 kDa MWCO, 24 pc) PAL-X8-10-24 24/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (10 kDa MWCO, 6 pc) PAL-X8-10-6 6/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (10 kDa MWCO, 96 pc) PAL-X8-10-96 96/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (100 kDa MWCO, 24 pc) PAL-X8-100-24 24/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (100 kDa MWCO, 6 pc) PAL-X8-100-6 6/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (100 kDa MWCO, 96 pc) PAL-X8-100-96 96/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (3 kDa MWCO, 24 pc) PAL-X8-3-24 24/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (3 kDa MWCO, 6 pc) PAL-X8-3-6 6/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (3 kDa MWCO, 96 pc) PAL-X8-3-96 96/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (30 kDa MWCO, 24 pc) PAL-X8-30-24 24/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (30 kDa MWCO, 6 pc) PAL-X8-30-6 6/PK PROTEIN ARK
Proteus X-Spinner 8 Pack (30 kDa MWCO, 96 pc) PAL-X8-30-96 96/PK PROTEIN ARK
Thin Stem Pipette Pack (500pc) PAL-X-PIP-500 500/PK PROTEIN ARK
