제품 상세

Antibody

6.5 - 270 kDa 범위를 커버하는 3가지 컬러 밴드를 포함하며,
최대 100%까지의 transfer 효과를 개런티하는 Prestained protein ladder를 소개합니다.

특 징

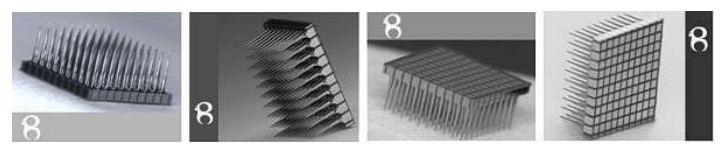

  • Utah Array는 안정적이고 장기적인 신호 수집에 이용되는 다채널 전극입니다.
  • 1500편 이상의 peer-viewed citation에서 cortex 연구에 이용되어졌으며 gold standard로서 입증되었습니다.
  • 최대 128개의 electrode channel을 제공하며, human/monkey 연구용으로 1024 채널까지 커스텀 업그레이드를 제공할 수 있습니다.
  • Connector types : CerePort/MultiPort (High-Density), Omnetics (Lightweight)
  • Electrode 수와 재질 (IrOx or Pt), 깊이, wire bundle 길이 등을 원하는 사이즈로 조정할 수 있습니다.








    적 용



      • Chronic & Acute recording
      • Brain-Computer Interface
      • Motor Cortex
      • Sensory Cortex
      • Spinal Cord
      • Peripheral Nerve Fibers


      사 양

      Channel count  Up to 128 active electrode channels
      Reference and ground  Ground source and selectable reference wires
      Electrode site metal options   Platinum (~400kΩ @ 1 kHz), Iridium oxide (~50 kΩ @ 1 kHz)
      Insulation  Parylene-C
      Standard electrode lengths  0.5,-1.5 mm (research), 10.0-1.5mm (clinical)
      Standard electrode pitch  400 μm
      MultiPort option  1–4 arrays per connector
      Wire bundle  25 μm Pt/Au lead wires between electrode array and connector
      Wire bundle length  20 mm - 130 mm length potted with medical-grade silicone elastomer









      주문정보

      주문정보 - Cat No, PRODUCT, SIZE, 수량 등 항목으로 구성되어있습니다.
        Product Cat.No. Size Maker Qty Data Sheet MSDS
