Optogenetics Tool | 고마바이오텍

제품 상세

6.5 - 270 kDa 범위를 커버하는 3가지 컬러 밴드를 포함하며,
최대 100%까지의 transfer 효과를 개런티하는 Prestained protein ladder를 소개합니다.

프린트 제품 문의

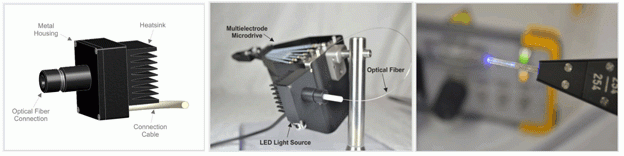

LED Light Source

Width	32mm
Length	53mm
Height	35mm
Weight	42g
Wavelength	470nm
Color	Blue
Max. continuous current	700mA
Max. pulsed current	1000mA
Max. absolute fiber output power	3.5mW
Max. relative fiber output power	382mW/sqmm

LED Light Source Control Unit

LED 광원으로부터의 안정적인 light emission을 위해 1000mA의 constant current를 공급해 주는 파워서플라이 입니다.
LED 광원제어장치는 Thomas LED 광원을 위해 설계된 line powered constant-current source 입니다.
빛의 세기는 메뉴얼 조정이 가능하며, 외부 DC 전압을 사용하여 장치에 입력함으로써 제어할 수 있습니다.

Width	116mm
Length	160mm
Height	60mm
Weight	500g
Signal output	constant-current
Max. output current	1000mA
External trigger input	TTL (0V=Low/5V=High)
External intensity control voltage	0…5V DC (=0…100% intensity)

PC Soft- and Hardware

Convenient graphical user interface for LED source control
LED light Intensity software control
LED light timing software control
Log file with all experiment data
Display of light source trigger timing on PC screen
Hardware interface: PCI insert card
Connection cable
PC with pre-installed software and operating system (optional available on request)

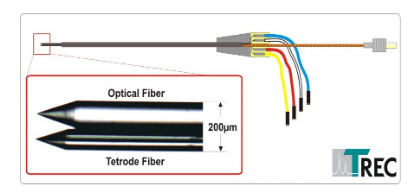

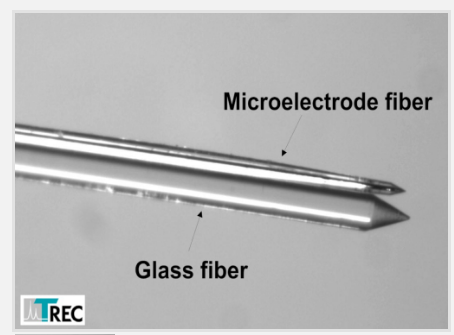

Optetrodes

4 Channel Electrodes

Material: Quartz glass insulated Platinum/Tungsten tetrode fiber combined with a glass fiber
Outer electrode shaft diameter 100µm (tetrode fiber)
Outer glass fiber diameter 120µm
Unique material combination
Biocompatible materials
Very thin shafts minimize tissue damage
Different electrode tissue impe-dance values available for recor-ding multi unit, single unit activi-ty or local field potentials

Single Channel Electrodes

Material: Quartz glass insulated Platinum/Tungsten tetrode fiber combined with a glass fiber
Outer electrode shaft diameter 80µm (single electrode fiber)
Outer glass fiber diameter 120µm
Unique material combination
Biocompatible materials
Very thin shafts minimize tissue damage
Different electrode tissue impe-dance values available for recor-ding multi unit, single unit activi-ty or local field potentials

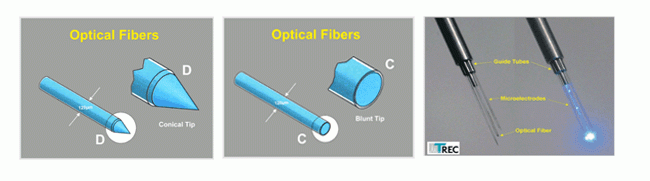

Optical Fibers

Biocompatible material
Minimal tissue damage while introducing in brain because of double conical fibers
Globular light distribution at the conical tip
Available for Thomas RECORDING Microdrive systems (e. g. Mini Matrix, Eckhorn Matrix) or other manipulators
Thomas Optical Fiber is available with differen tip shapes
Different fiber connectors available

주문정보 - Cat No, PRODUCT, SIZE, 수량 등 항목으로 구성되어있습니다.
	Product	Cat.No.	Size	Maker	Qty	Data Sheet	MSDS
